Electric Motor Bearing Fits and Clearances

Overview of Electric Motor Bearings: Types and Applications

Electric motors employ a variety of bearings to cater to different operational demands and environments. These bearings are crucial in reducing friction, supporting loads, and maintaining alignment within the motor. The choice of bearing type depends on factors such as load capacity, speed, environmental conditions, and the specific requirements of the application.

General Types of Bearings

• Ball Bearings: These are the most common type of bearings used in electric motors. They are designed to handle both radial and axial loads. Their structure includes steel balls contained within a circular raceway, allowing for smooth and efficient rotation. Ball bearings are versatile and used in applications ranging from household appliances to industrial machinery.

• Roller Bearings: These bearings are designed to carry heavy radial loads. They come in various forms, such as cylindrical roller bearings and tapered roller bearings. Roller bearings distribute the load over a larger area, which enhances their load-carrying capacity and makes them suitable for high-stress environments.

• Specialized Bearings: These include angular contact bearings and ceramic bearings, which are tailored for specific high-performance applications. Angular contact bearings are ideal for high-speed operations requiring combined radial and axial load support, while ceramic bearings are known for their superior resistance to wear and heat, making them suitable for extreme conditions.

Specific Applications in Various Industries

Electric motor bearings are used across numerous industries, each with unique operational challenges:

• Manufacturing: In manufacturing plants, bearings are essential for the reliable operation of machinery such as conveyors, pumps, and compressors. High-load capacity and durability are key requirements here.

• Automotive: Electric motors in vehicles rely on bearings that can withstand high speeds and temperatures, ensuring smooth and efficient operation over long periods.

• Aerospace: Bearings in aerospace applications must endure extreme conditions, including high temperatures and substantial mechanical stresses. Ceramic bearings are often preferred for their resilience and lightweight properties.

• Medical Equipment: Precision and reliability are paramount in medical devices, where bearings ensure the smooth functioning of diagnostic machines and surgical tools.

Types of Electric Motor Bearings

Ball Bearings: Features and Uses

Ball bearings are the cornerstone of many electric motor applications due to their versatility and efficiency.

• Structure and Functionality: Ball bearings consist of a series of steel balls enclosed within two rings called races. The balls reduce rotational friction and support radial and axial loads.

• Common Applications: These bearings are found in a vast range of applications, from small electric motors in household appliances to large industrial machines. Their ability to handle moderate loads and high speeds makes them a popular choice across different sectors.

Roller Bearings: Detailed Analysis

Roller bearings are indispensable in scenarios requiring high load capacities and precise alignment.

• Types of Roller Bearings:

  • Cylindrical Roller Bearings: These bearings have rollers that are longer than their diameter, which helps distribute the load over a larger area.
  • Tapered Roller Bearings: These bearings can handle significant radial and axial loads due to their tapered shape, which aligns with the axis of rotation.

• Load Capacity and Performance: Roller bearings are designed to carry heavy radial loads and are often used in applications where ball bearings would not suffice. Their design ensures a high degree of stability and durability, making them suitable for heavy machinery and industrial applications.

Specialized Bearings: Technical Applications

Specialized bearings are tailored to meet the specific demands of advanced applications, where standard bearings may not perform adequately.

• Angular Contact Bearings: These bearings are designed to support both radial and axial loads. They have a contact angle that allows them to accommodate axial loads more effectively. They are commonly used in high-speed applications such as turbines and CNC machines.

• Ceramic Bearings: Made from silicon nitride or zirconium oxide, ceramic bearings offer high resistance to wear, low thermal expansion, and the ability to operate at higher speeds compared to traditional steel bearings. They are ideal for applications in aerospace, medical equipment, and high-performance racing.

Bearing Fits Explained

Definition and Role of Bearing Fits in Motor Performance

Bearing fits refer to the dimensional relationship between the bearing and its housing or shaft. This relationship is crucial because it ensures that the bearing remains securely in place while allowing for the necessary movements within the motor. Proper bearing fits are vital for maintaining the alignment of the motor’s rotating components, minimizing vibration, and preventing premature wear and failure.

In electric motors, the performance and reliability are heavily dependent on the precision of the bearing fits. An incorrect fit can lead to various issues such as excessive friction, overheating, and mechanical failure. For instance, a fit that is too tight may cause the bearing to overheat and seize, while a fit that is too loose can lead to misalignment and vibration, resulting in increased wear and noise. Therefore, selecting the appropriate fit type and ensuring precise tolerances are essential for optimal motor performance and longevity.

Types of Fits for Bearings

There are three main types of fits used for bearings: interference fit, clearance fit, and transition fit. Each type has its specific applications and benefits, depending on the operational requirements of the electric motor.

Interference Fit: Specifications and Applications

Interference fit, also known as a press fit, involves a slight overlap between the bearing and its housing or shaft. This fit requires force to assemble, creating a tight, secure connection that prevents any relative movement between the bearing and the mating surface. Interference fits are ideal for applications that involve high loads and significant vibrations, as they ensure that the bearing remains firmly in place.

Specifications and Benefits:

• Provides a rigid and stable connection.
• Suitable for high-load applications.
• Reduces the risk of bearing movement and misalignment.

Applications:

• Heavy machinery and industrial equipment.
• High-speed electric motors.
• Situations where stability and rigidity are paramount.

Clearance Fit: Technical Insights

Clearance fit provides a slight gap between the bearing and the housing or shaft, allowing for easy assembly and disassembly. This type of fit is beneficial in applications where thermal expansion and easy maintenance are critical. The clearance fit ensures smooth operation and reduces friction, as the bearing can move slightly within its housing to accommodate thermal expansion without causing stress.

Characteristics and Benefits:

• Allows for thermal expansion and contraction.
• Facilitates easy assembly and maintenance.
• Reduces friction and wear.

Applications:

• Applications with significant temperature variations.
• Situations requiring frequent maintenance or replacement.
• Low-load and moderate-speed electric motors.

Transition Fit: Engineering Considerations

Transition fit lies between interference and clearance fits, offering a balance of secure connection and ease of assembly. This type of fit provides versatility for various applications, combining the benefits of both fit types. Transition fits are used when both stability and some degree of movement are required.

Overview and Benefits:

• Combines stability with flexibility.
• Suitable for moderate-load applications.
• Balances the need for secure fitting and easy assembly.

Applications:

• General-purpose electric motors.
• Moderate-speed applications.
• Environments with variable operating conditions.

Determining the Right Fit

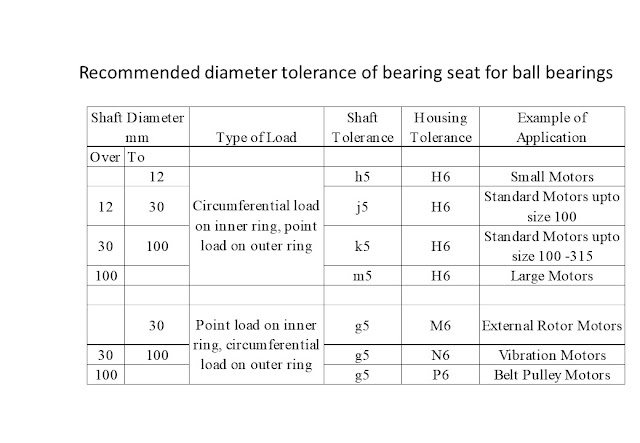

Factors Influencing Fit Choice: Shaft and Housing Tolerances

Selecting the appropriate bearing fit is a critical step in ensuring the optimal performance and longevity of electric motors. The choice of fit is influenced by several factors, including the tolerances of the shaft and housing, the operational conditions, and the specific requirements of the application.

Key Factors in Fit Selection

1. Shaft and Housing Tolerances:

   • The dimensions and tolerances of the shaft and housing are fundamental in determining the correct bearing fit. Precise machining and adherence to specified tolerances ensure that the bearing fits correctly, reducing the risk of misalignment and vibration.
   • Shaft and housing tolerances are classified into various grades, which indicate the allowable deviation from the nominal dimensions. Tighter tolerances are typically required for high-precision applications, while standard tolerances may suffice for general-purpose uses.

2. Operational Conditions:

   • The operating environment significantly impacts the selection of bearing fits. Factors such as temperature variations, load conditions, and the presence of contaminants must be considered.
   • For instance, in high-temperature environments, a clearance fit may be preferred to accommodate thermal expansion. Conversely, in applications involving heavy loads and high vibrations, an interference fit might be more suitable to ensure a stable and secure connection.

3. Load Requirements:

   • The nature and magnitude of the loads acting on the bearing also influence the choice of fit. Radial and axial loads must be considered, as different fits offer varying levels of support and stability.
   • High-load applications typically require interference fits to prevent bearing movement and ensure load distribution. Moderate-load applications may use transition fits, while low-load conditions might be best served by clearance fits.

4. Material Properties:

   • The materials of the shaft, housing, and bearing components play a crucial role in fit selection. Different materials exhibit varying degrees of thermal expansion, wear resistance, and strength.
   • For example, bearings made of materials with high thermal expansion coefficients may require clearance fits to allow for expansion without causing stress. Materials with low wear resistance might benefit from tighter fits to minimize relative motion and wear.

5. Application-Specific Requirements:

   • Certain applications have unique requirements that dictate the choice of bearing fits. For example, high-speed applications may prioritize fits that minimize friction and heat generation, while precision applications demand fits that maintain alignment and reduce play.

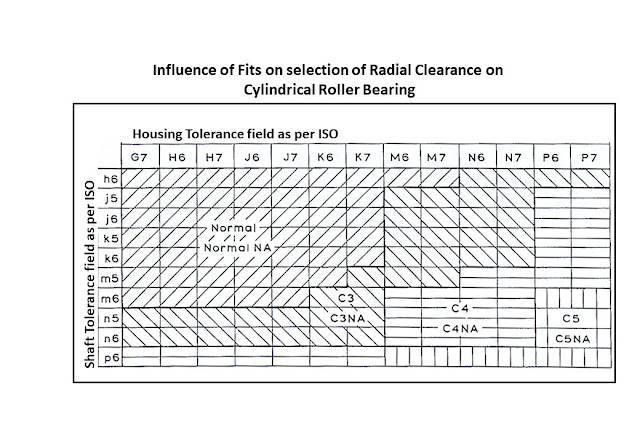

Bearing Clearances 101

Explanation and Importance of Bearing Clearances

Bearing clearances refer to the space between the bearing components, allowing for thermal expansion and lubrication flow. Proper clearances are vital for minimizing friction, heat generation, and wear, ensuring the bearing’s longevity and efficiency.

1. Radial Clearance:

   • Radial clearance is the gap between the bearing’s inner and outer rings, measured perpendicular to the shaft. This clearance is crucial for accommodating thermal expansion and ensuring smooth rotation, particularly in high-speed applications. Proper radial clearance helps maintain the bearing’s performance under varying operational conditions.
   • Radial clearance affects the load distribution within the bearing. Too much clearance can lead to instability and vibration, while too little can cause excessive friction and heat.

2. Axial Clearance:

   • Axial clearance is the gap between the bearing components measured along the axis of the shaft. It plays a significant role in accommodating axial loads and preventing axial displacement, essential for maintaining the motor’s alignment and stability.
   • Adequate axial clearance ensures that the bearing can handle axial forces without compromising its structural integrity. Insufficient axial clearance can lead to increased stress on the bearing, causing premature failure.

Measuring and Adjusting Clearances

Types of Bearing Clearances

Radial Clearance: Specifications and Measurement

Radial clearance is the space between the inner and outer rings of a bearing, measured perpendicular to the axis of rotation. This clearance is essential for accommodating thermal expansion and ensuring smooth, efficient rotation. Maintaining the correct radial clearance is crucial for preventing excessive friction and wear, which can lead to bearing failure.

Specifications and Importance:

• Radial clearance allows for slight movement within the bearing, which helps distribute the load evenly and reduces stress on individual components.
• The correct radial clearance ensures that the bearing operates efficiently under varying load and temperature conditions.
• Excessive radial clearance can lead to instability, vibration, and noise, while insufficient clearance can cause high friction, overheating, and premature wear.

Measurement Techniques:

• Feeler Gauges: Used to measure the gap between the bearing rings by inserting different thickness blades to determine the clearance.
• Dial Indicators: Measure the displacement of the bearing rings to calculate the radial clearance accurately.
• Micrometers: Precision tools that provide highly accurate measurements of the bearing components, helping to ensure the correct radial clearance.

Axial Clearance: Detailed Analysis

Axial clearance refers to the space between the bearing components measured along the axis of rotation. This clearance is critical for accommodating axial loads and ensuring that the bearing remains aligned and stable during operation.

Specifications and Importance:

• Adequate axial clearance is necessary to prevent axial displacement and ensure the bearing can handle axial forces without excessive stress.
• Proper axial clearance helps maintain the structural integrity of the bearing and prevents premature failure due to misalignment or excessive load.

Measurement Techniques:

• End Play Measurement: Involves moving the shaft back and forth and measuring the total movement using a dial indicator to determine the axial clearance.
• Axial Load Testing: Applying a known axial load to the bearing and measuring the resulting displacement to assess the axial clearance.

Measuring Bearing Clearances

Tools and Best Practices for Accurate Measurements

Accurate measurement of bearing clearances is essential for ensuring optimal performance and preventing premature failure. The following tools and practices are commonly used to measure bearing clearances:

Tools:

• Feeler Gauges: Simple, effective tools for measuring small clearances between bearing rings.
• Dial Indicators: Provide precise measurements of displacement and are used to calculate both radial and axial clearances.
• Micrometers: High-precision instruments that measure the dimensions of bearing components to ensure proper clearance.

Best Practices:

• Multiple Point Measurements: Measure clearances at multiple points around the bearing to account for any variations and ensure consistent results.
• Temperature Considerations: Perform measurements at the operating temperature of the bearing to account for thermal expansion and ensure accurate readings.
• Clean and Lubricate: Ensure the bearing and measuring tools are clean and properly lubricated to avoid contamination and achieve precise measurements.

Adjusting Bearing Fits and Clearances

Methods to Adjust Fits

Adjusting bearing fits involves modifying the dimensions of the housing or shaft to achieve the desired fit. This can be done through various techniques, depending on the specific requirements of the application.

Techniques for Fit Adjustment:

• Machining: Precision machining of the housing or shaft to achieve the required dimensions and ensure a proper fit.
• Selective Assembly: Choosing bearings and components with specific tolerances to achieve the desired fit without additional machining.
• Thermal Techniques: Heating or cooling the bearing or components to temporarily change their dimensions and facilitate assembly.

Techniques to Modify Clearances

Modifying bearing clearances is essential for maintaining optimal performance and preventing issues such as excessive friction or vibration. Various techniques can be used to adjust clearances, depending on the specific application and requirements.

Methods and Tools:

• Shims and Spacers: Adding or removing shims and spacers to adjust the axial or radial clearance as needed.
• Preload Adjustment: Applying a preload to the bearing to reduce clearance and increase stiffness, which is particularly useful in high-precision applications.
• Lubrication: Using appropriate lubricants to reduce friction and wear, which can help maintain the desired clearance over time.

Common Issues and Solutions

Common Issues with Bearing Fits and Clearances

Diagnosing Fit Problems

Properly diagnosing fit problems in electric motor bearings is essential to prevent operational inefficiencies and potential failures. Here are some common symptoms and their causes:

Common Symptoms:

• Excessive Noise: Unusual sounds such as grinding, squealing, or knocking often indicate improper fits. These noises can result from excessive clearance or interference.
• Vibration: Increased vibration can signal that the bearing fit is too loose, causing misalignment and instability.
• Overheating: Bearings that are too tight can generate excessive friction, leading to overheating and potential seizure.

Diagnostic Procedures:

• Visual Inspection: Check for signs of wear, scoring, or damage on the bearing surfaces.
• Vibration Analysis: Use vibration sensors to detect abnormal patterns that suggest misalignment or excessive play.
• Thermal Imaging: Identify hotspots that indicate overheating due to improper fits.
• Sound Analysis: Utilize acoustic sensors to pinpoint sources of unusual noises.

By employing these diagnostic methods, engineers can identify and address fit issues before they lead to more severe problems.

Troubleshooting Clearance Issues

Clearance issues in bearings can lead to significant performance problems, including increased friction, heat generation, and premature wear. Identifying and resolving these issues is crucial for maintaining motor efficiency and longevity.

Identifying Clearance Problems:

• Excessive Play: Excessive movement within the bearing can cause instability and vibration. This is often due to too much radial or axial clearance.
• Inadequate Clearance: Insufficient clearance can lead to high friction and overheating, resulting in bearing failure.

Resolving Clearance Issues:

• Adjusting Preload: Apply or adjust preload to reduce excessive clearance and increase bearing stiffness.
• Using Shims and Spacers: Add or remove shims and spacers to fine-tune the clearance to optimal levels.
• Replacing Bearings: In some cases, replacing the bearing with one that has the correct clearance specifications may be necessary.

Solutions to Fit and Clearance Problems

Engineering Solutions for Interference Fit Issues

Interference fit issues can pose significant challenges, especially in high-load or high-speed applications. Here are some engineering solutions to address these problems:

Specific Engineering Solutions:

• Adjust Machining Tolerances: Precision machining of the shaft and housing to meet the required tolerances can ensure a proper interference fit.
• Thermal Techniques: Use thermal expansion by heating the housing or cooling the bearing to facilitate assembly. This method allows for a secure fit once the components return to ambient temperature.
• Surface Treatments: Apply coatings or treatments to adjust the dimensions slightly and improve the fit without extensive machining.

Case Studies:

• In an industrial setting, a company faced repeated failures of motor bearings due to improper interference fits. By refining the machining tolerances and implementing thermal assembly techniques, they significantly reduced bearing failures and increased the reliability of their motors.

Remedies for Clearance Fit Problems

Addressing clearance fit problems requires careful adjustment and precise engineering solutions to ensure optimal bearing performance.

Practical Remedies:

• Selective Assembly: Choose bearings and housings with specific dimensions to achieve the desired clearance without further modification.
• Preload Adjustment: Apply an appropriate preload to reduce excessive clearance and improve bearing stiffness.
• Shims and Spacers: Use shims and spacers to fine-tune the clearance, ensuring it falls within the optimal range for the application.

Examples from the Field:

• A precision machinery manufacturer experienced performance issues due to inadequate clearance fits. By implementing selective assembly and adjusting preload, they were able to achieve the desired clearance, resulting in smoother operation and longer bearing life.
